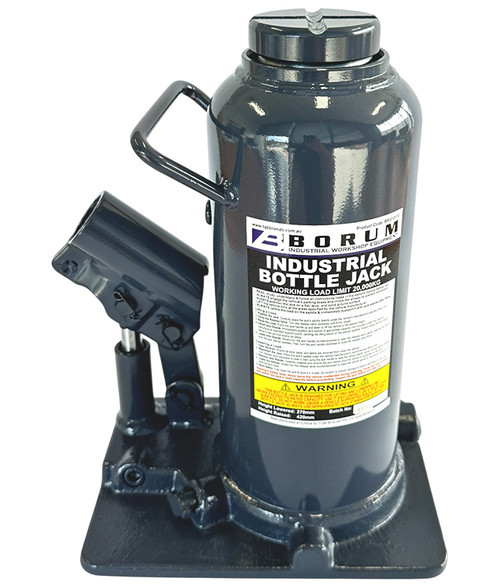

This powerful, heavy-duty Borum Industrial Hydraulic Bottle Jack with high quality glide-action pressure pump is designed for hard-hitting commercial use, making large loads easy to lift. The lightweight jack is ideal for lifting farm vehicles, heavy-duty machinery, industrial construction equipment and more. High quality, fitted with unique overload protection system and large stable base, this unit is ideal for daily use in a demanding environment.
Fitted with a safety overload valve for extra protection, the safety valve is installed between the pump and high-pressure check valve in the barrel/lift ram assembly. When attempting to raise a load greater than the jack's capacity, the safety valve opens on each pump stroke and diverts any further oil back to the reservoir thus preventing the raising of the load.
Features
Machined and polished cylinders with die-cut threads provide non-abrasive leak-free, durable performance
Fabricated from hard-cast steel with heat-treated critical stress areas
Specially designed internal hydraulics allow the jack to be operated vertically & horizontally
Unique cross-type forged release valve assures positive load control
Overload protection built into the hydraulic system ensures user safety
3-piece galvanised steel handle allows for easy & compact storage
The Borum BR02 series Bottle Jacks can be used horizontally when the pump is positioned above the ram housing or lying on their side with the pump positioned as per the illustrations below. Refer to the owners manual for more information.
Specifications
Safe Working Capacity: 20,000kg
Minimum Height: 183mm
Maximum Height: 305mm
Handle: 3-piece galvanised steel
Carton: 231L x 182W x 294H mm
Gross Weight: 9.2kg
IMPORTANT: NEVER get beneath a vehicle that is only supported by a jack. ALWAYS chock the vehicle wheels and use support stands.
Intended Use
For heavy duty use on truck, agriculture, construction, mining, automotive, and marine applications where lifting and lowering is required.
About the Borum brand
Our “heavy duty commercial” range of Borum Industrial equipment has been manufactured to exacting standards for over 40 years. We specify industrial quality components and design to ensure a long and durable working life in commercial transport, mining, earthmoving and railway environments. Our Borum Industrial range of equipment is focused on achieving superior professional standards, reliability, quality, and are covered by a 12 month trade use warranty.
The Borum BR02 series Bottle Jacks can be used horizontally when the pump is positioned above the ram housing or lying on their side with the pump positioned as per the illustrations below. Refer to the owners manual for more information.
