Shipping info:
These are FULLY CONSTRUCTED so the $69 shipping cost list is METRO MAINLAND areas only! If you are in a rural or offshore location there will be an additional shipping cost, Please order now & we will contact you BEFORE processing the order with details of the rural cost. The order will only proceed if you are happy with the shipping.
Delivery info:
As these units ship on a pallet or skid they cannot be shipped/delivered to a private residence for health and safety reasons/rules & we will require a business address for delivery of this order that must have access to a forklift for unloading.
Click & Collect If you are in WA SA or Vic you can collect from our metro warehouses there by using the coupon code WAREHOUSECOLLECT when placing your order online. This will remove the shipping from the order & alert the staff that you will be collecting personally. Once the order is ready we will email you the collection address & other details. NOTE: Do not put the coupon in the order comments section. Look for the coupon code link in your online shopping cart or the secured checkout.

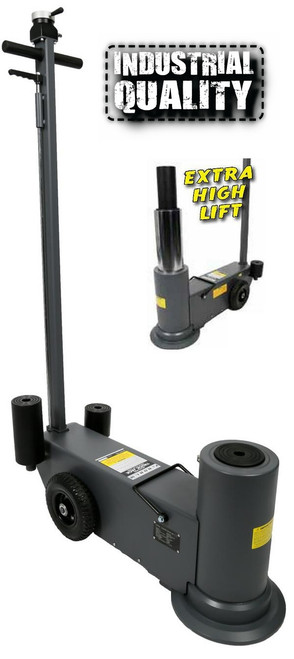

3 Stage – 60,000KG / 40,000KG / 20,000KG
The BORUM "Industrial Quality" Commercial Jacks are made to TQB Brands specification using quality components that are built to exacting standards through CNC machining and Robotic Welding. The result is top industrial performance and reliability. BORUM "Industrial Quality" Commercial Jacks are the perfect choice for a wide variety of uses. These Commercial Jacks are carefully constructed from the highest grades of rugged steel. The super strong hydraulic pump utilises wear-resistant American Made XTP double sealing ring technology. Only the finest quality of Hydraulic Oil is used that has been tested from -25°C - 60°C.
Use these workhorses with a 145–175psi rated air pressure supply to lighten the load and provide the fast, strong lifting power you need. With several lifting options as well as included saddle adaptors…the wide range of BORUM Commercial Jacks will suit most desired applications from agriculture to mining, earth-moving to passenger transport as well as aviation and military.

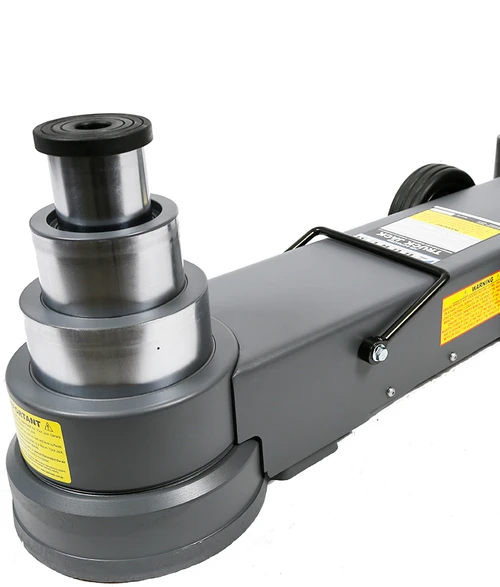

The BTJ204060TA quickly and easily manages a hefty 60,000kg in the first stage lift position, 40,000kg at the higher 2nd stage extension and 20,000kg at its highest 3rd extension. This Air Actuated Commercial Jack is designed for heavy duty commercial use and features a long reach “T" handle and large rubber wheels for smooth manoeuvring around the workshop. As always with BORUM, safety is just as important as industrial standard quality, so all BORUM Truck Jacks have a built-in safety valve to prevent overloading and keep the operator safe. Additional safety feature includes a Self-Return lowering and lifting switch to ensure complete control during operation. With a low-profile minimum height of 150mm this jack is ideal for low ground-clearance vehicles and a high lift maximum of 447mm (includes additional lifting saddles), this BORUM Air Actuated Jack is a very versatile heavy-lifter suitable for most workshops.
Features
American made Seals
Double Sealing Function using XTP Industry Sealing
Telescopic air actuation lift (air-hydraulic pump)
Long T-handle lets you easily position your jack under vehicle
Self-Returning Lowering and Lifting Switch
Internal and External Cylinders hard chromed
High manoeuvrability & deep reach under vehicles
2 extension adaptors / saddle plates
Large rubber wheels
All adaptors can be properly stored for transport on each side of the jack
Specifications
First Stage: 60,000kg Safe Working Capacity
Second Stage: 40,000kg Safe Working Capacity
Third Stage: 20,000kg Safe Working Capacity
First Stage Hydraulic Lift: 57mm
Second Stage Hydraulic Lift: 59mm
Third Stage Hydraulic Lift: 61mm
Minimum Height: 150mm
Maximum Height: 447mm
Adaptors: 45mm and 75mm
Handle Length: 1380mm
Operating Air Pressure: 145-175psi
Chassis: 875x295x150mm
Nett Weight: 67kg
NOTE: This jack must only be used on hard level surfaces. Do not get under a load that is supported by a truck jack. ALWAYS USE SUPPORT STANDS.
About the Borum brand
Our “heavy duty commercial” range of Borum Industrial equipment has been manufactured to exacting standards for the past 34 years. We specify industrial quality components and design to ensure a long and durable working life in commercial transport, mining, earthmoving and railway environments. Our Borum Industrial range of equipment is focused on achieving world-class professional standards, reliability, quality, and are covered by a 12 month trade use warranty*.
