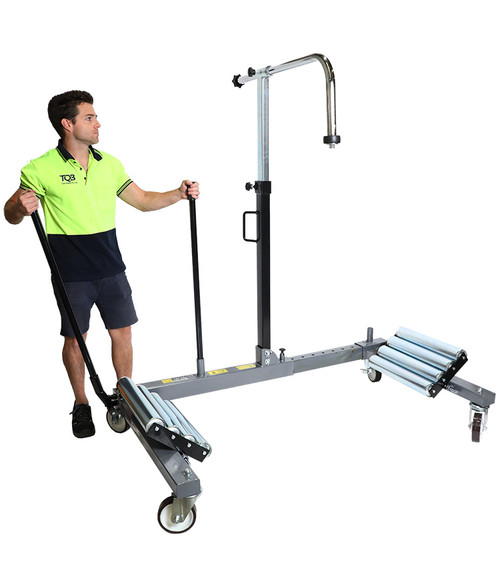

This Borum Industrial Hydraulic 1200kg Heavy Duty Wheel Dolly Lifter is designed for the removal, installation and transportation of large truck, earthmoving, tractor and agricultural commercial tyre and wheel combinations. Hydraulically activated lift arms handle wheel assemblies from 1000mm up to 2000mm in wheel diameter. Four ball bearing mounted castor wheels provide positive stability and easy manoeuvrability. Quadruple bearing mounted lift rollers easily rotate vehicle rim & tyre for bolt pattern alignment while the integrated tyre clamp support arm keeps the wheel secured in place.
Features
Hydraulic system actuated to provide smooth, positive power for the removal and installation of large commercial wheel & tyre combinations
Heavy duty steel frame adjusts laterally to allow precise positioning of commercial truck, earthmoving, agricultural & tractor tyres along with the wheel rollers for further control.
Supports heavy commercial rims and tyres up to 1200kg
Rolls easily on four quality steel bearing castors
Includes heavy duty adjustable support arm to keep load secure
Integrated locking pin secures the dolly to relieve hydraulic pressure under load
Lead-free paint is applied to ensure a long-lasting finish and prevent corrosion
Paint finish is oil, grease and dirt-resistant for easy cleanup
Specifications
Safe Working Capacity: 1200kg
Min. Tyre Diameter: 1000mm
Max. Tyre Diameter: 2000mm
Lifting Range: 0 - 750mm
Roller Length: 490mm
Roller Diameter: 80mm
Roller Table Area: 490 x 320mm
Caster Wheel Diameter: 150mm
Ground Clearance (Rollers Lowered): 90mm
Jack Handle & Positioning Handle Length: 1000mm
Minimum Footprint (Jack Handle Extended Out & Support Arm Vertical): 2000(L) x 1000(D) x 1340(H)mm
Maximum Footprint (Jack Handle Extended Out & Support Arm Vertical): 2500(L) x 1000(D) x 2100(H)mm
Crate Dimensions: 1370(L) x 1040(W) x 250(H)mm
Weight: 125kg
Intended Use
Designed to facilitate the removal and installation of pneumatic tyres and wheel assemblies on earth movers, trucks, buses, agricultural machinery and trailers up to 1200kg & 2000mm diameter.
