Description

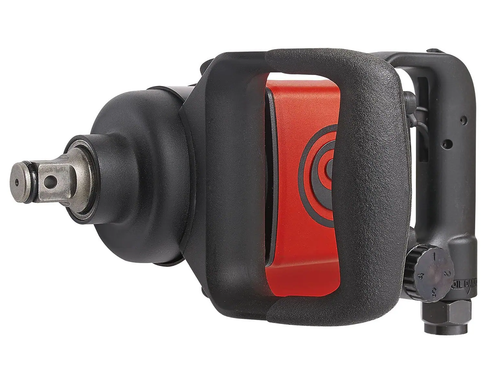

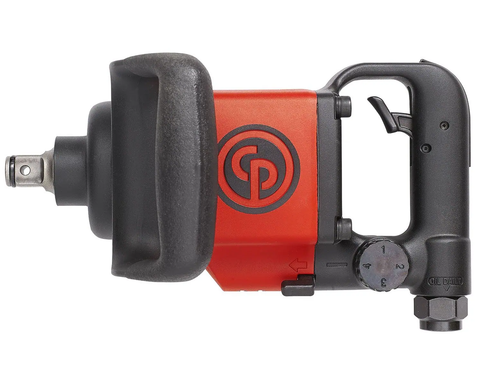

Our high torque impact wrench CP6763 Series is designed for the toughest environments and bolting applications. The twin hammer clutch mechanism, with aluminum body and steel clutch housing delivers a high power-to-weight ratio for demanding industrial environments. The motor provides up to 1630, 1760 Nm/1200, 1300 ft.lbs of max reverse torque.
NOTE THESE ARE EX-EUROPE SO ALLOW AROUND 10-12 WORKING DAYS FOR DELIVERY TO AUSTRALIA
Design & Functions
Max working torque fwd: 1450 Nm
Length (L): 290 mm
Air inlet thread size (in): 1/2
Weight: 6.6 kg
Impact mecanism: Twin hammer
Min hose diam (16 ft hose length): 0.38 in
Body: Aluminum
Uncertainty vibration-K:2.9 m/s²
Blow per minute: 730
Min working torque fwd: 340 Nm
Air consumption at free speed: 26 l/s
Sound Power: 109 d: B(A)
Side to Center: 41 mm
Clutch housing: Steel
Max torque reverse: 1760 Nm
Max dynamic air working pressure: 6.3 bar
Clutch lubrication type: Grease
Side handle: Yes
Starting system: Trigger
Free Speed: 6600 rpm
Output retainer type: Dual
Torque limited: No
Handle type: D-handle
Output drive type: Sq
Sound Pressure: 98 d: B(A)
Vibration (m/s²): 11.4
Min hose diam (5 m hose length): 13 mm
Output drive size (in): 3/4
TorqueMax working torque fwd: 1450 Nm
Min working torque fwd: 340 Nm
Max torque reverse: 1760 Nm
Torque limited: No
