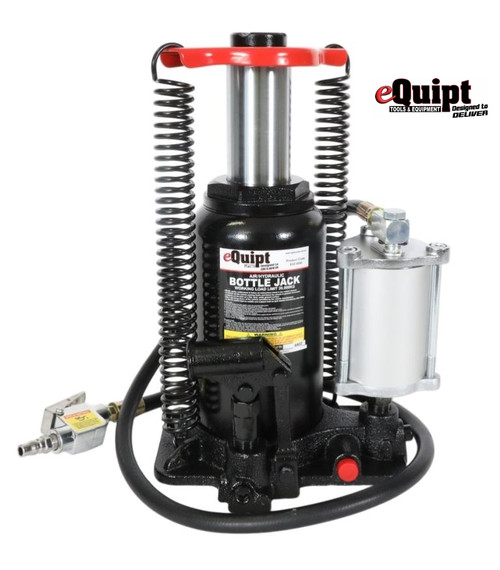

This heavy duty 20,000kg eQuipt Air/Manual Bottle Jack packs a big punch, providing enough lifting power for use with farm vehicles, heavy-duty machinery, industrial construction equipment and more. The 2 piece removable handle is long enough to lift the load with ease and also helps to position the jack. Use this workhorse with a 110-125psi rated air pressure supply to lighten the load and provide the fast, strong lifting power you need, or operate it manually for normal operation just about anywhere.
Our eQuipt Air/Manual Bottle Jacks are designed to operate either manually or pneumatically. The manual function allows for normal operation anywhere, even without an air supply.
Fitted with a safety overload valve for extra protection, the safety valve is installed between the pump and high-pressure check valve in the barrel/lift ram assembly. When attempting to raise a load greater than the jack's capacity, the safety valve opens on each pump stroke and diverts any further oil back to the reservoir thus preventing the raising of the load.
Features:
Manufactured of superior-grade steel to exacting standards for quality and durability
Industrial quality hydraulic cylinder unit operates at lower oil pressure to raise load, reduce wear and extend service life
Precision machined, chrome plated and polished piston-ram
CNC machined ports and threads
Built-in hydraulic by-pass protection against over pumping damage

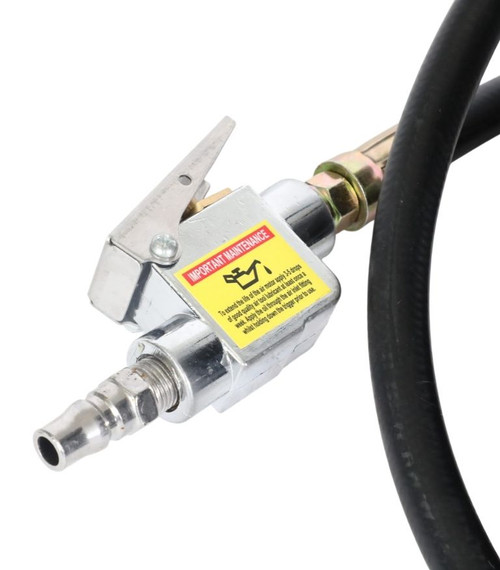

Versatile "quick connector" design for easy removal of air hose for compact storage or remote operation
Compact yet powerful Industrial Quality Air Turbo Motor
Lead-free paint is applied to ensure a long-lasting finish and prevent corrosion
Paint finish is oil, grease and dirt-resistant for easy cleanup
Specifications:
Safe Working Capacity: 20,000kg
Minimum Height: 262mm
Maximum Height: 504mm
Hydraulic Stroke: 163mm

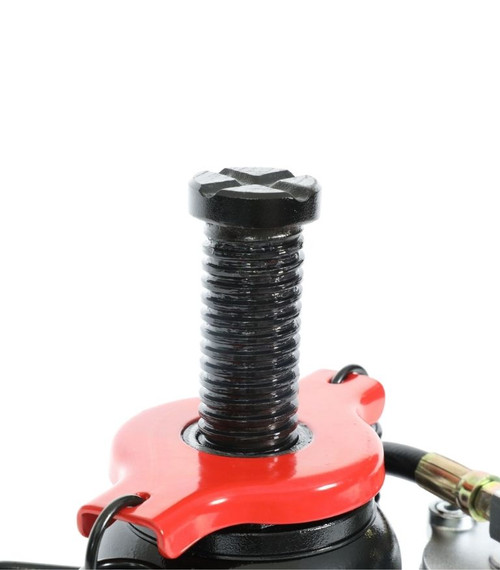

Adjustable Screw: 79mm
Operating Air Pressure: 110-125psi
Air Inlet Fitting: 1/4" x 18NPT
Nett Weight: 16kg
Carton: 275 x 190 x 290mm
Gross Weight: 17kg
IMPORTANT: NEVER get beneath a vehicle that is only supported by a jack. ALWAYS chock the vehicle wheels and use support stands.
Intended Use
For professional heavy duty use on truck, agriculture, construction, mining, automotive, and marine applications where lifting and lowering is required.
About the eQuipt brand
'eQuipt' provides workshop tools & equipment built for reliability and value, ideal for smaller workshop operations. Our “Designed to Deliver” approach offers durable, fit for purpose tools and equipment that perform consistently. Backed by TQB Brands' 40+ years experience in the industry, 'eQuipt' provides users with dependable gear for their workshop needs.
