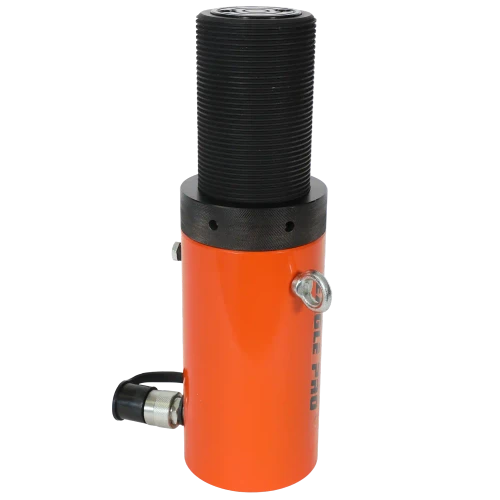

A 50-tonne single acting hydraulic ram with locking collar and 150mm stroke, built from high strength alloy steel for heavy-duty industrial lifting, pushing, clamping and spreading.
Mechanical lock nut holds the load
Replaceable grooved saddles
Composite bearings — no metal-on-metal wear
Fast straight-pull spring return
Description
The Eagle Pro EL series includes an alloy steel lock nut for mechanical load holding. Constructed from high-strength alloy steel to maximise durability, its hardened chrome piston reduces damage caused by wear and corrosion. The overflow port also functions as a stroke limiter.
The EL series includes hardened, grooved, replaceable saddles, and composite bearings prevent metal-to-metal contact. Quick reaction times are achieved with heavy-duty, straight-pull return springs, and an environmentally friendly coating process produces a finish that further increases durability.
Features
High-strength steel lock nut for mechanical load holding
Hardened, chromed piston resists wear and corrosion
High-strength composite bearings support off-centre loads without scoring the cylinder walls
Industrial U-cup seal prevents costly leaks
Precision-machined high-strength alloy-steel body with a baked-enamel finish for durability and corrosion protection
Includes a standard coupler with dust cover
Specifications
Cylinder Capacity @ 10,000 PSI 50t
Stroke 150mm
Effective Area 70.8 cm²
Oil Capacity 1062 cm³
Collapsed Height (A) 264mm
Extended Height (B) 414mm
Lock Nut Thickness (C) 36mm
Outside Diameter (D) 125mm
Saddle Diameter (E) 71mm
Piston Diameter (F) Tr 95×4
Weight 25kg
Warranty 12 months (trade use)
Intended Use
For industrial & fast paced heavy-duty applications where the convenience of hydraulic power can be utilised for spreading, clamping, pushing and lifting in power, gas & steel plants, refinery shutdown and civil construction, ship building, agricultural and transport equipment & mining applications.
About Eagle Pro
With over 3 decades experience of manufacturing hydraulic tools for industrial applications, Eagle Pro Hydraulics has become the trusted partners for applications spanning from offshore plant maintenance to mining, infrastructure, commercial and industrial. Eagle Pro Hydraulics are manufactured to ISO 9001:2018 through international quality assurance programs which involve consistent observation of administration, management, manufacturing and production control. Eagle Pro hydraulic cylinders meet or exceed ANSI B30.1. This results in reliable and dependable high-quality products you can count on every time.
