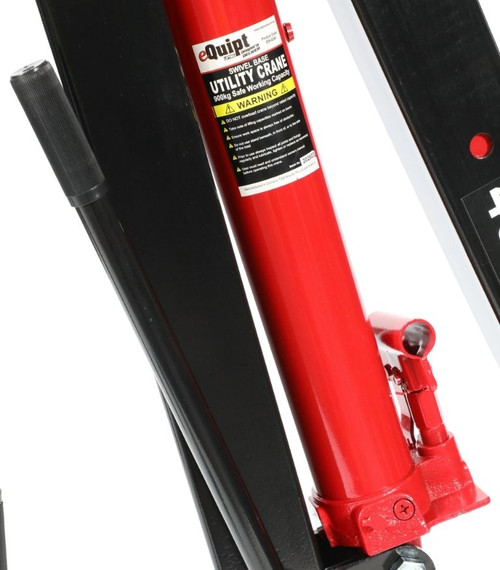

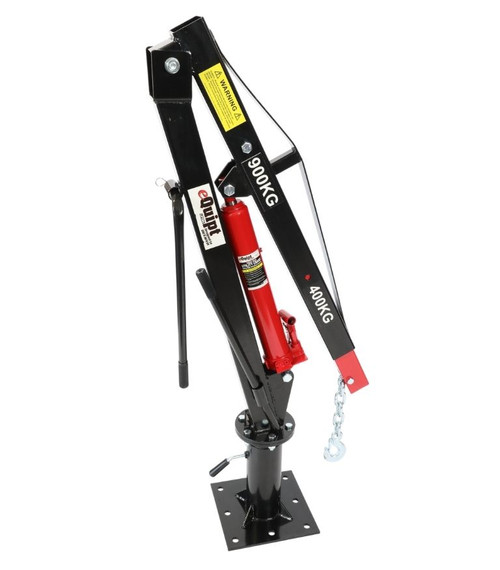

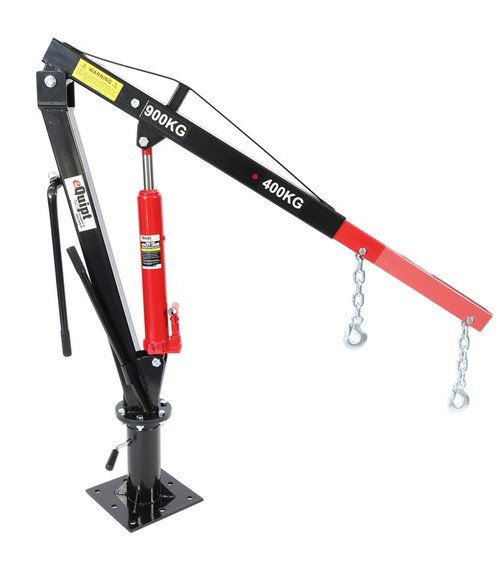

The eQuipt "Designed to Deliver" steel Utility Crane effortlessly lifts items from the ground to ute/truck tray height, then rotates them into the cargo area. The telescopic boom design with manual hydraulic hand pump pivots the boom up and down and swivels 360° for maximum accessibility. Get extra lift where you need it most with this eQuipt Utility Crane that easily lifts loads to 900kg. The steel boom extends up to 1290mm and the base swivels to help you get the best angle when hoisting items onto your ute or truck bed. The pickup crane folds away when not in use. (Previous models include product code/s; 2069T, 2079)
Note: Crane boom should always be stored and secured in the down position when not in use.
This is to protect the chrome ram from elements/corrosion etc and to safely drive the vehicle without having the boom swing around dangerously.
Features
Pre-drilled base plate makes mounting quick and easy
Handles up to 400kg in extended mode and 900kg in retracted mode

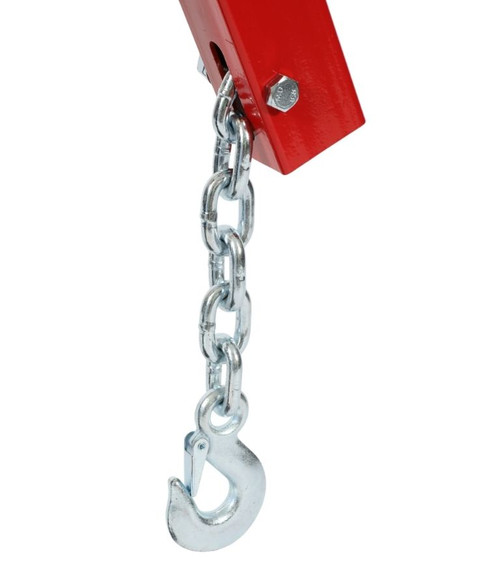

Includes chain hook with chain slot lock and one cable hook both with safety latch
Base rotates 360 degrees
Designed for vertical lifting only
Not to be used for lifting personnel or overhead lifting
All steel construction
Boom stores over wheel well when not in use
Specifications
Hydraulic Lifting Capacity: 400 - 900Kg
Maximum Reach of Boom: 1290mm (400kg) 870mm (900kg)
Maximum Height (hook height): 2300mm (400kg) 2000mm (900kg)
Minimum Height:: 1425mm (from ute tray to boom pivot - excluding boom)
Mounting Base:275 x 275mm
Mounting Base Holes: 8 holes x 16mm (dia) x 110mm (centre-centre)
Weight: 48kg
Carton 1 of 2 : 1110 x 250 x 180mm
Carton 2 of 2 : 340 x 330 x 320mm
Intended Use
To raise and/or lower loads from a raised height once mounted to a suitable mounting point capable of sustaining the combined load of the equipment and working piece.
