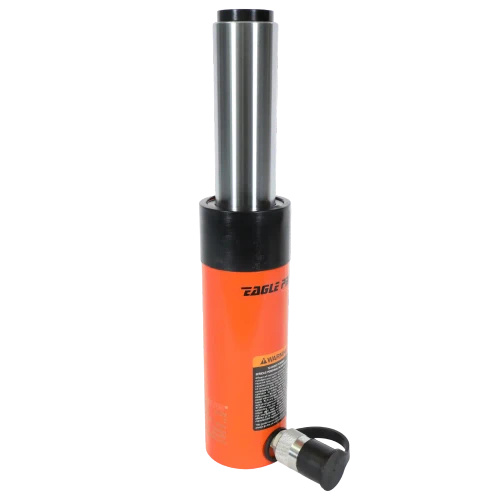

A 25-tonne single acting hydraulic ram with 102mm stroke and a spring loaded return system. Built from high strength alloy steel with industrial seals for demanding heavy-duty applications.
Heavy-duty build for the harshest industrial sites
Fast spring-loaded retraction
Hardened chrome-plated piston
Flexible mounting — collar, piston & base threads
Description
The Eagle Pro ES series redefines durability for the harshest of industrial environments with its high-strength alloy steel construction. A hardened and chromed piston ensures superior service life by reducing wear and corrosion.
The ES series isn't only durable — it gets the job done. Heavy-duty, straight-pull return springs provide fast retraction, and for greater flexibility and easy mounting it comes with a collar, multiple piston threads, and base mounting holes.
The female coupler is supplied with a dust cover, preventing dirt and debris from entering the hydraulic system.
The Eagle Pro ES series complies with ASME B30.1 standards.
Features
Hardened alloy-steel guide ring prevents over-travel and reduces wear from off-centre loads
Heavy-duty wiper ring keeps out dust and debris, extending service life
High-strength composite bearings support off-centre loads without scoring the cylinder walls
Precision-machined high-strength alloy-steel body with a baked-enamel finish for durability and corrosion protection
Hardened, chromed piston resists wear and corrosion
Industrial U-cup seal prevents costly leaks
Heavy-duty straight-pull return springs for fast retraction
Includes a standard coupler with dust cover
Specifications
Cylinder Capacity @ 10,000 PSI 25t
Stroke 102mm
Effective Area 33.2 cm²
Oil Capacity 338.64 cm³
Collapsed Height (A) 215mm
Extended Height (B) 317mm
Collar Thread (C) 3-5/16 - 12
Collar Thread Length (X) 54mm
Outside Diameter (D) 86mm
Piston Diameter (F) 57mm
Piston Internal Thread (O) 1-1/2 - 16UN
Piston Internal Length (P) 26mm
Base Bolt Circle (U) 58mm
Base Mounting Thread (V) 1/2 - 13UNC
Base Thread Depth (Z) 19mm
Weight 8kg
Warranty 12 months (trade use)
Intended Use
For industrial & fast paced heavy-duty applications where the convenience of hydraulic power can be utilised for spreading, clamping, pushing and lifting in power, gas & steel plants, refinery shutdown and civil construction, ship building, agricultural and transport equipment & mining applications.
