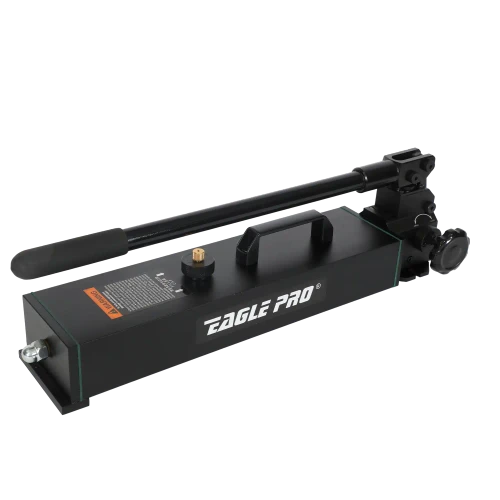

A two-speed, single-acting hydraulic hand pump for Eagle Pro single acting cylinders, delivering up to 700 BAR for heavy-duty industrial spreading, clamping, pushing and lifting.
Powerful dual-speed pumping
Aircraft-grade aluminium valve block
Compact and job-site portable
Internal safety valve protects the system
Description
The Eagle Pro EPA series hydraulic hand pumps are some of the most durable, powerful and reliable hand pumps in the industry today.
The EPA series features valve blocks machined from a single piece of high-strength, aircraft-grade aluminium, paired with high-capacity alloy steel reservoirs that maximise durability.
Compact and easy to carry around the job site, these powerful dual-speed pumps offer some of the best flow rates in the industry to get the job done faster. Every EPA series hand pump features an internal safety valve to prevent system damage.
Features
Spring loaded ram return system, allowing controlled retraction of the ram
High strength alloy steel body is precision machined to reduce wear and features a baked enamel finish
Pumps have an automatic overload system to help prevent damage to cylinders, pumps and accessories
Easily adapts to hoses, rams, pumps, spreaders, and other accessories using Eagle Pro fittings
Industrial strengthened seals prevent costly leaks
Hardened alloy steel guide ring eliminates over travel and provides support
Eagle Pro ram couplers fitted with dust covers minimising fluid contamination
Specifications
Hand Pump Compatibility Eagle Pro single acting cylinders
Speed Two speed hand pump
Usable Oil Volume 2300cm3
Pressure Rating 1st Stage 25bar
Pressure Rating 2nd Stage 700bar
Oil Displacement Per Stroke 1st Stage 33cm3
Oil Displacement Per Stroke 2nd Stage 3.3cm3
Handle Force 49kg
Warranty 12 months (trade use)
Intended Use
For industrial & fast paced heavy-duty applications where the convenience of hydraulic power can be utilised for spreading, clamping, pushing and lifting in power, gas & steel plants, refinery shutdown and civil construction, ship building, agricultural and transport equipment & mining applications.
About Eagle Pro
With over 3 decades experience of manufacturing hydraulic tools for industrial applications, Eagle Pro Hydraulics has become the trusted partners for applications spanning from offshore plant maintenance to mining, infrastructure, commercial and industrial. Eagle Pro Hydraulics are manufactured to ISO 9001:2018 through international quality assurance programs which involve consistent observation of administration, management, manufacturing and production control. Eagle Pro hydraulic cylinders meet or exceed ANSI B30.1. This results in reliable and dependable high-quality products you can count on every time.
