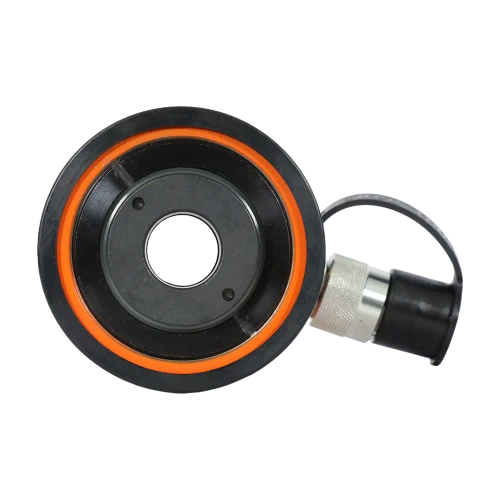

A 20-tonne single-acting hollow piston hydraulic ram with a 49mm stroke, letting rod, cable or bar pass through the centre for pulling and tensioning work. Manufactured to ISO 9001:2018 and meets or exceeds ANSI B30.1.
Spring-loaded ram for controlled retraction
Precision-machined alloy steel, baked enamel
Automatic overload protection
Fits Eagle Pro 3/8" and 1/4" NPT accessories
Description
With nearly 3 decades of manufacturing hydraulic tools for industrial applications, Eagle Pro Hydraulics has become the trusted partners for applications spanning from offshore plant maintenance to mining, infrastructure, commercial & industrial. Eagle Pro Hydraulics are manufactured to ISO 9001:2018 through international quality assurance programs which involve consistent observation of administration, management, manufacturing and production control. Eagle Pro hydraulic cylinders meet or exceed ANSI B30.1. This results in reliable & dependable high-quality products you can count on every time.
Features
Spring loaded ram return system, allowing controlled retraction of the ram.
High strength alloy steel body is precision machined to reduce wear and features a baked enamel finish for durability and corrosion protection.
Pumps have an automatic overload system to help prevent damage to cylinders, pumps and accessories.
Easily adapts to hoses, rams, pumps, spreaders, and other accessories using Eagle Pro 3/8" NPT and 1/4" NPT fittings.
Industrial strengthened seals prevent costly leaks.
Hardened alloy steel guide ring eliminates over travel and provides support for off-centre loads without damaging the cylinder walls.
Eagle Pro ram couplers fitted with dust covers minimising fluid contamination.

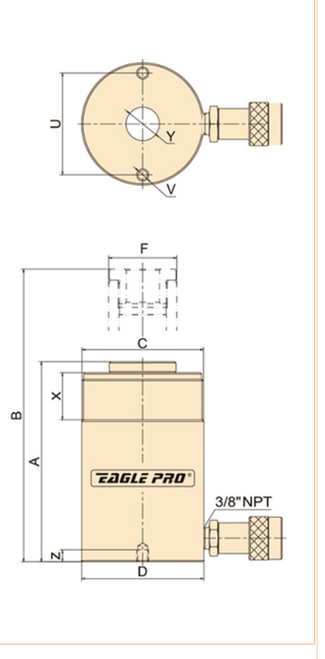

Specifications
Cylinder Capacity @ 10,000psi (700 BAR) 20,000kg
Stroke 49.00mm
Effective Cylinder Area 32.8cm2
Oil Capacity 161.00cm3
Collapsed Height 162.00mm
Extended Height 211.00mm
Warranty 12 months (trade use)
Intended Use
For industrial & fast paced heavy-duty applications where the convenience of hydraulic power can be utilised for spreading, clamping, pushing and lifting in power, gas & steel plants, refinery shutdown and civil construction, ship building, agricultural and transport equipment & mining applications.
