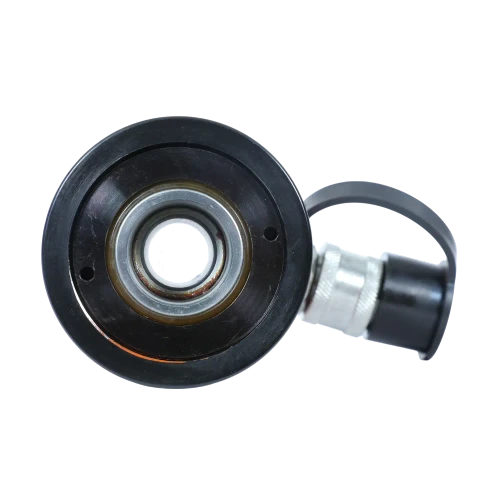

A 20-tonne single acting hollow piston hydraulic ram with a 155mm stroke and spring-loaded return, built for heavy-duty industrial spreading, clamping, pushing and lifting.
Hollow piston — push and pull
Lightning-fast spring return
Hardened, chrome-plated piston
Coupler & dust cover included
Features
Hardened alloy-steel guide ring prevents over-travel and reduces wear from off-centre loads
High-strength composite bearings support off-centre loads without scoring the cylinder walls
Hardened, chromed piston resists wear and corrosion
Heavy-duty return springs for fast retraction
Precision-machined high-strength alloy-steel body with a baked-enamel finish for durability and corrosion protection
Industrial U-cup seal prevents costly leaks
Includes a standard coupler with dust cover
Specifications
Cylinder Capacity @ 10,000 PSI 20t
Stroke 155mm
Effective Area 32.8 cm²
Oil Capacity 508 cm³

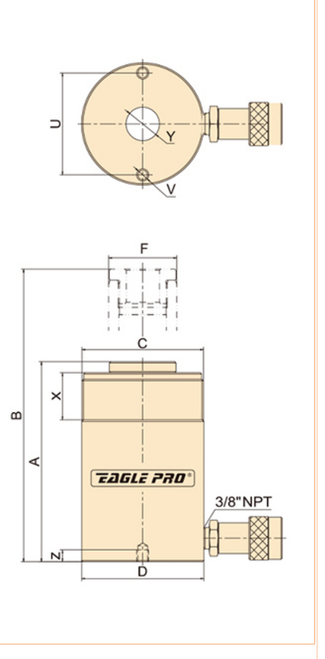

Collapsed Height (A) 306mm
Extended Height (B) 461mm
Collar Thread (C) 3-7/8 - 12
Collar Thread Length (X) 38mm
Outside Diameter (D) 99mm
Piston Diameter (F) 55mm
Piston Internal Thread (O) 1-9/16 - 16UN
Piston Internal Length (P) 19mm
Base Bolt Circle (U) 82.5mm
Base Mounting Thread (V) 3/8 - 16UNC
Base Thread Depth (Z) 9.4mm
Center Hole Diameter (Y) 26.9mm
Weight 14.5kg
Warranty 12 months (trade use)
Intended Use
For industrial & fast paced heavy-duty applications where the convenience of hydraulic power can be utilised for spreading, clamping, pushing and lifting in power, gas & steel plants, refinery shutdown and civil construction, ship building, agricultural and transport equipment & mining applications.
About Eagle Pro
With over 3 decades experience of manufacturing hydraulic tools for industrial applications, Eagle Pro Hydraulics has become the trusted partners for applications spanning from offshore plant maintenance to mining, infrastructure, commercial and industrial. Eagle Pro Hydraulics are manufactured to ISO 9001:2018 through international quality assurance programs which involve consistent observation of administration, management, manufacturing and production control. Eagle Pro hydraulic cylinders meet or exceed ANSI B30.1. This results in reliable and dependable high-quality products you can count on every time.
