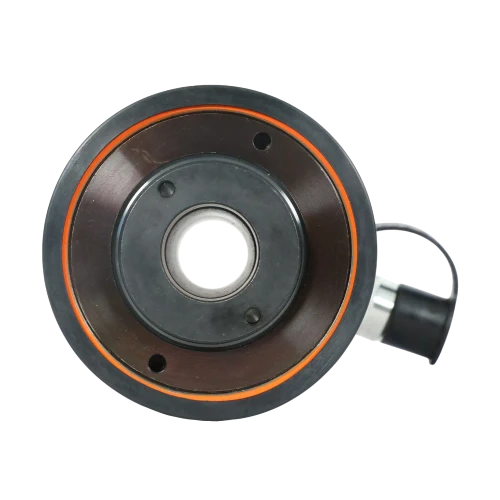

A 30 tonne single acting hollow piston hydraulic ram with a 155mm stroke and spring loaded return. Built for heavy-duty industrial spreading, clamping, pushing and lifting applications.
Hollow piston — push and pull
Lightning-fast spring return
Hardened, chrome-plated piston
Coupler & dust cover included
Description
The Eagle Pro ESH series allows for both pushing and pulling by incorporating a hollow piston design. The heavy-duty return spring provides notoriously quick reaction times, and collar threads are included for easy fixturing.
The rugged EAB-201A female coupler, supplied with a dust cover, shields the hydraulic system from dust and debris.
The Eagle Pro ESH series complies with ASME B30.1 standards.
Features
Hardened alloy-steel guide ring prevents over-travel and reduces wear from off-centre loads
High-strength composite bearings support off-centre loads without scoring the cylinder walls
Hardened, chromed piston resists wear and corrosion
Heavy-duty return springs for fast retraction
Precision-machined high-strength alloy-steel body with a baked-enamel finish for durability and corrosion protection
Industrial U-cup seal prevents costly leaks
Includes a standard coupler with dust cover
Specifications
Cylinder Capacity @ 10,000 PSI 30t
Stroke 155mm
Effective Area 48 cm²
Oil Capacity 744 cm³

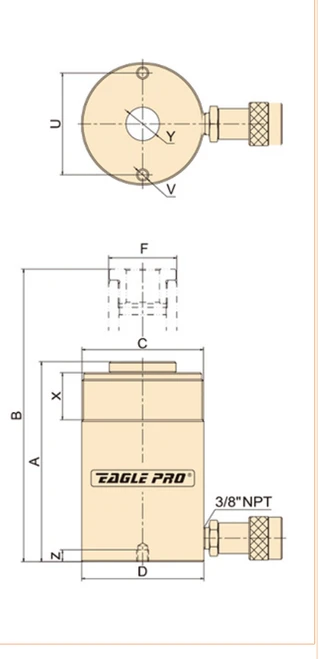

Collapsed Height (A) 330mm
Extended Height (B) 485mm
Collar Thread (C) 4-1/2 - 12
Collar Thread Length (X) 42mm
Outside Diameter (D) 115mm
Piston Diameter (F) 65mm
Piston Internal Thread (O) 1-13/16 - 16UN
Piston Internal Length (P) 22mm
Base Bolt Circle (U) 92.2mm
Base Mounting Thread (V) 3/8 - 16UNC
Base Thread Depth (Z) 14mm
Center Hole Diameter (Y) 33.3mm
Weight 23kg
Warranty 12 months (trade use)
Intended Use
For industrial & fast paced heavy-duty applications where the convenience of hydraulic power can be utilised for spreading, clamping, pushing and lifting in power, gas & steel plants, refinery shutdown and civil construction, ship building, agricultural and transport equipment & mining applications.
